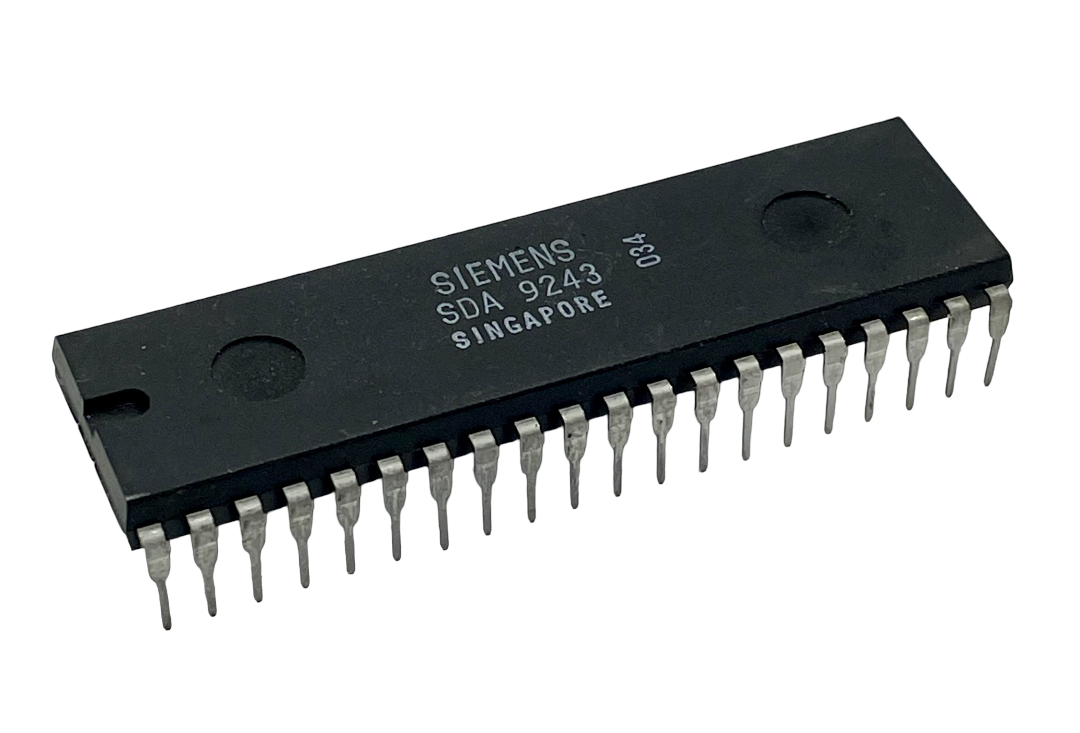

Siemens SDA 9243

Siemens SDA 9243 is a specialized integrated circuit (IC) primarily used in television and video processing equipment from the late 20th century.

Details & Functionality

The SDA 9243 is a Display Controller or Video Timing Generator chip. It was a key part of Siemens' "DIGIT 2000" digital television signal processing system. Its main roles included:

• Video Timing: Generating synchronization signals for television displays.
• On-Screen Display (OSD): Processing and displaying menus, channel numbers, and volume bars on the screen.
• Package: It comes in a DIP-40 (Dual In-line Package with 40 pins).
