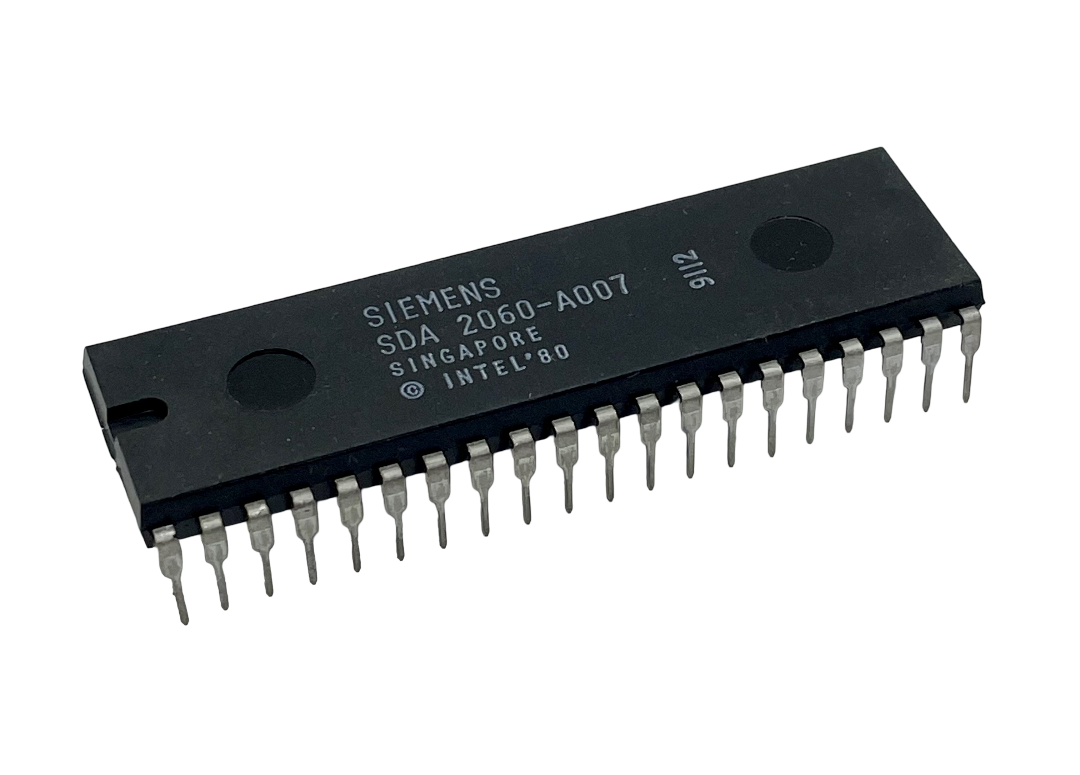

Siemens SDA 2060-A007

Siemens SDA 2060-A007 is a specialized integrated circuit (IC) primarily used as a television microcomputer controller in older CRT TV sets and video equipment. It belongs to a family of 8-bit microcontrollers (SDA 2040 to SDA 2060) developed by Siemens for consumer electronics.

Key Details

• Architecture: Based on the Intel '80 series (specifically the 8051/8031 family), indicated by the "© INTEL '80" marking on the package.
• Package Type: 40-pin Plastic Dual In-line Package (PDIP-40).
• Manufacturing: This specific unit was manufactured in Singapore; similar variants were also produced in Austria.
• Function: It serves as a single-chip microcontroller, likely used in control logic for devices like televisions, VCRs, or industrial control panels.
