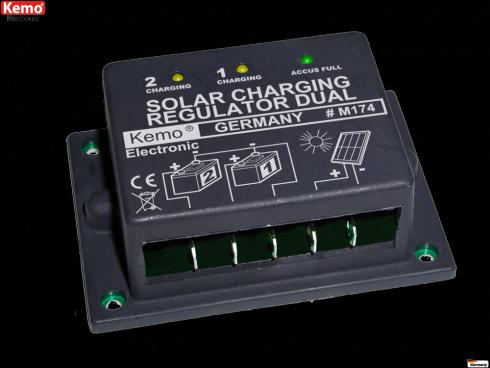

M174 - Aurinkokenno-lataussäädin 1-2 akulle, 16A.

Technical Data Input voltage solar panels 15 - 30 V/DC open circuit voltage, 12 V/DC rated voltage Max. charging current total 16 A (2 batteries of max. 8 A each or 1 battery connected in parallel at both outputs up to 16 A) Connections 1 or 2 batteries 12 V. If only one battery is connected then both outputs (1 + 2) in parallel (simultaneously) applied to the battery Displays one display per battery "battery is charging", 1 display: "all batteries charged". Cooling In case of currents > 4 A the module has to be screwed with the metal bottom on a heat sink with a surface of > 300 sq. cm. Fuse A pre-fuse F16 A is necessary (not included) Switch-on voltage battery approx. < 12,9 V/DC (± 5) Switch-off voltage "battery charged" ca. 14,2 V/DC (± 5) Own current consumption (is taken from the battery) < 2 mA Reverse current-proof (no additional diode required) Dimensions ca. 87 x 60 x 33 mm (with mounting bottom) To be connected between a solar panel 12 V/DC and 1 or 2 batteries in order to avoid an overload of the batteries. If 2 batteries are connected, they are charged separately from each other. The battery with lowest charging voltage always receives more charging current. With LED displays and high charging capacity: max. 2 x 8 A or 1 x 16 A
