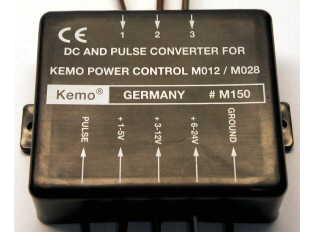

M150 - DC/PWM-ohjaus tehonsäätimille M012, M028.

Technical Data Operating voltage 110 V/AC or 230 V/AC (is led to the dimmer module via the connections) Output The module delivers a control voltage for the potentiometer input of the dimmer modules M012, M028 or M028N (Page 46) Input The module M150 may either be controlled with control DC voltages of 1 - 5 V/DC or 3 - 12 V/DC or 6 - 24 V/DC. Or with TTL pulses with a pulse width modulation Frequency between 1 - 10 kHz Impulse voltage approx. 5 V/DC, pulse width 10 - 90 PWM. The power is adjusted with the pulse width 10 - 90 Input resistances control input 1 - 5 V/DC > 1,4 k, control input 3 - 12 V/DC > 4,1 k, control input 6 - 24 V/DC > 9,1 k TTL pulse input > 1,1 k Galvanic separation via an optocoupler between the control inputs and the signal output towards the power control module Dimensions approx. 70 x 60 x 23 mm (without fastening straps

Lisätiedot: http://www.kemo-electronic.de/datasheets/m150.pdf
