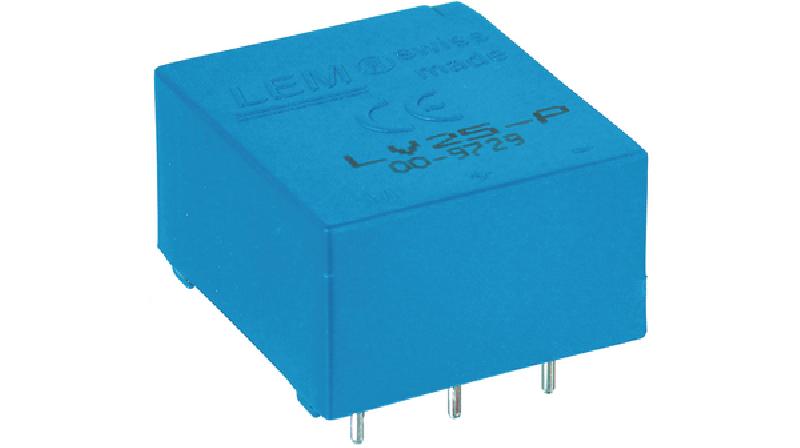

LEM LV25-P - Voltage Transducer, LV Series, 25 mA, -14 mA to 14 mA, 15 Vdc, 0.9

A PCB mounting voltage transducer based on the Hall effect. The unit provides galvanic isolation between primary and secondary circuits. To enable a voltage to be measured a current proportional to the measured voltage must be collected through an external resistor, selected by the user, in series with the primary circuit of the unit. Suitable for the electronic measurement of voltages associated with DC, AC and impulse circuits Provides galvanic isolation between primary and secondary circuits Closed loop (compensated) current transducer Excellent accuracy Very good linearity Low thermal drift Low response time High bandwidth High immunity to external interference Low disturbance in common mode
