Honeywell 1CH28 - Aircraft Honeywell Micro Switch. MFR 91929. Kestää kovempaakin käyttöä. Normihinta näillä yleensä kymmenkertainen.

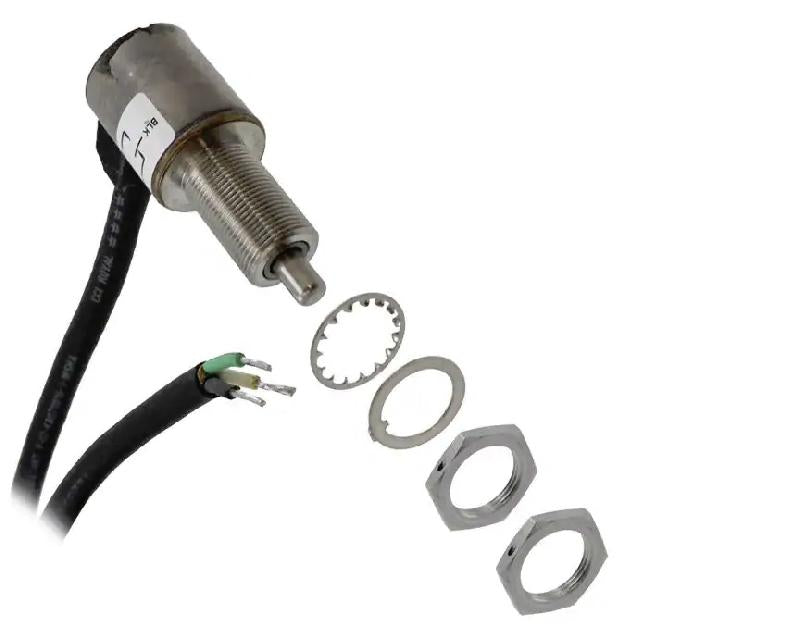

Product Details CH Series Environmentally Sealed Limit Switch The CH Series are an environmentally sealed unit offering high accuracy and reliability, even in extreme conditions. They are designed to be small and lightweight yet still offer high performance. 1CH28-12 Limit Switch The 1CH28-12 limit switch from Honeywell is constructed from robust materials. The main enclosure is stainless steel, and it features a corrosion resistant steel plunger and bushing. The plunger and bushing also utilise corrosion resistance stainless steel. It is fitted with an SJO 3 conductor cable type. It is a single pole double throw limit (SPDT) limit switch with one normally closed (NC) and one normally open (NO) contact. It has a maximum operating force of 12 lb and a full overtravel force of 30 lb maximum. The switch is sealed as per MIL-PRF-8805 Symbol 3. Physical Mount Panel Weight 510.291416 g Technical Current Rating 4 A Max Current Rating 4 A Termination Wire Leads Throw Configuration SPDT Voltage Rating (DC) 28 V Dimensions Depth 65.913 mm Compliance
