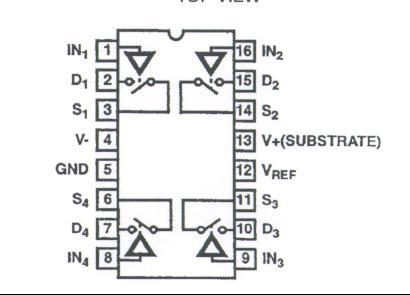

DG201ACJ - CMOS ANALOG SWITCH

DG201ACJ is a high-performance Quad Single-Pole Single-Throw (SPST) CMOS analog switch primarily manufactured by Maxim Integrated (now part of Analog Devices) and Siliconix. It is designed for high-frequency signal routing and precision switching in audio and communication systems.

Key Specifications

The DG201ACJ features the following parameters:

• Switch Configuration: Quad SPST (Normally Closed).
• Operating Voltage: Dual supply range of ±4.5V to ±18V.
• On-Resistance (RDS(on)): Maximum of 200 Ohms (typically 175 Ohms).
• Switching Speed: Maximum turn-on time of 600ns and turn-off time of 450ns.
• Power Dissipation: Maximum of 842 mW.
• Package Type: 16-pin Plastic Dual In-line Package (PDIP-16).
• Temperature Range: Commercial grade, typically operating from 0°C to +70°C.

Kuva suuntaa antava.
