DAC08HQ

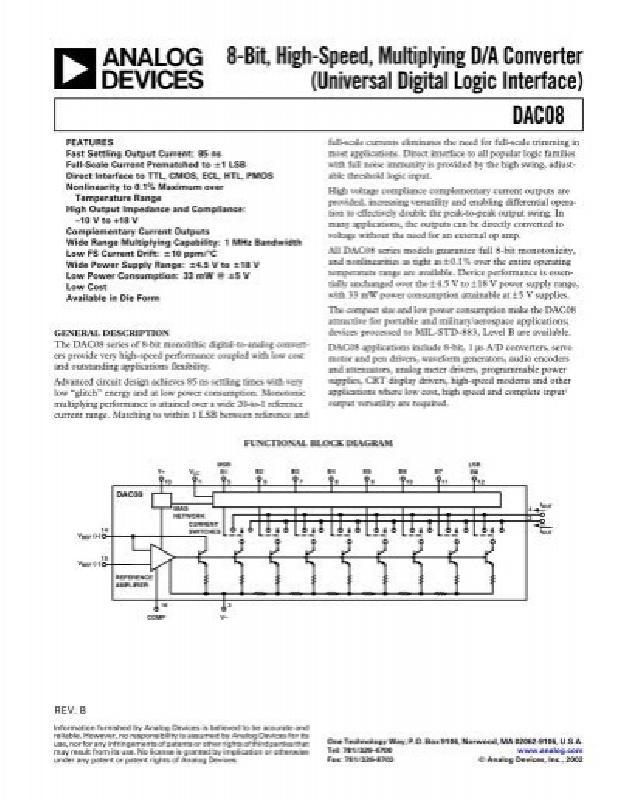

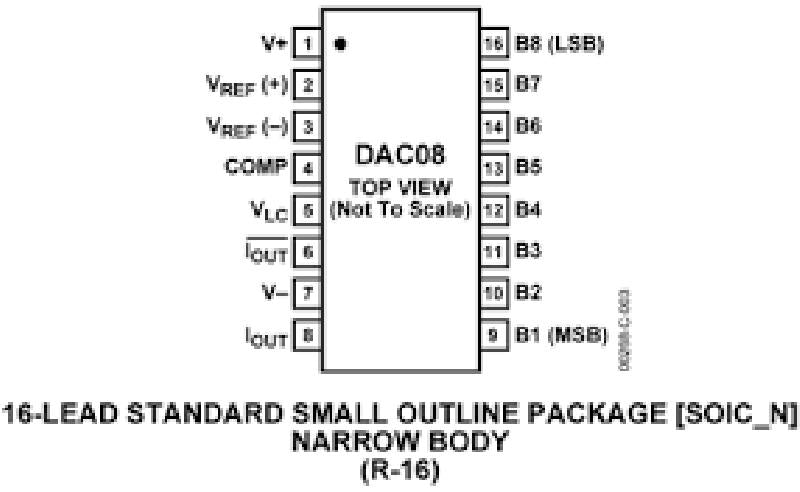

DAC08 / DAC08HQ is a monolithic 8-bit digital-to-analog converter (DAC) designed for high-speed performance and low power consumption. It typically operates by converting parallel 8-bit digital data into a corresponding analog current output, often requiring an external operational amplifier to convert that current into a usable voltage.

Key Specifications

The DAC08 series features:

• Resolution: 8-bit monolithic design.
• Settling Time: Very fast performance, typically 85 ns (some variants reach 70 ns).
• Power Supply Range: Wide operating range from ±4.5 V to ±18 V.
• Power Consumption: Low dissipation, approximately 33 mW at ±5 V supplies.
• Nonlinearity: Guaranteed to 0.1% maximum over the full temperature range.
• Logic Interface: Direct interface compatibility with TTL, CMOS, ECL, HTL, and PMOS logic families.
• Output Compliance: High voltage compliance from −10 V to +18 V.
