CPL16R6L-25 - CMOS Programmable Logic Devices (PLD)

CPL16R6L-25 is an integrated circuit (IC) belonging to the family of Programmable Logic Devices (PLD). It is a variant of the widely used 16R6 architecture, typically utilized for creating state machines and complex logic circuits in embedded systems.

Technical Specifications

the part number breaks down as follows:

• Device Type: 16R6, which signifies a device with 16 inputs and 6 registered outputs.
• Logic Style: The "L" typically indicates a Low-Power version of the architecture.
• Speed Grade: The "-25" denotes a propagation delay or maximum clock-to-output time of 25 nanoseconds.
• Package and Temperature: The "NC" suffix often refers to a Commercial temperature range (0°C to 70°C) and a specific package type, commonly a Plastic Leaded Chip Carrier (PLCC) or Dual In-line Package (DIP).

Key Features

• Architecture: It utilizes a programmable AND array followed by a fixed OR array, common in PAL (Programmable Array Logic) devices.
• Output Configuration: Includes six D-type flip-flops for clocked logic applications, making it suitable for sequencing and timing control.
• Technology: Often manufactured as a UV-Erasable or One-Time Programmable (OTP) device depending on the specific manufacturing run and package (e.g., windowed ceramic vs. plastic).

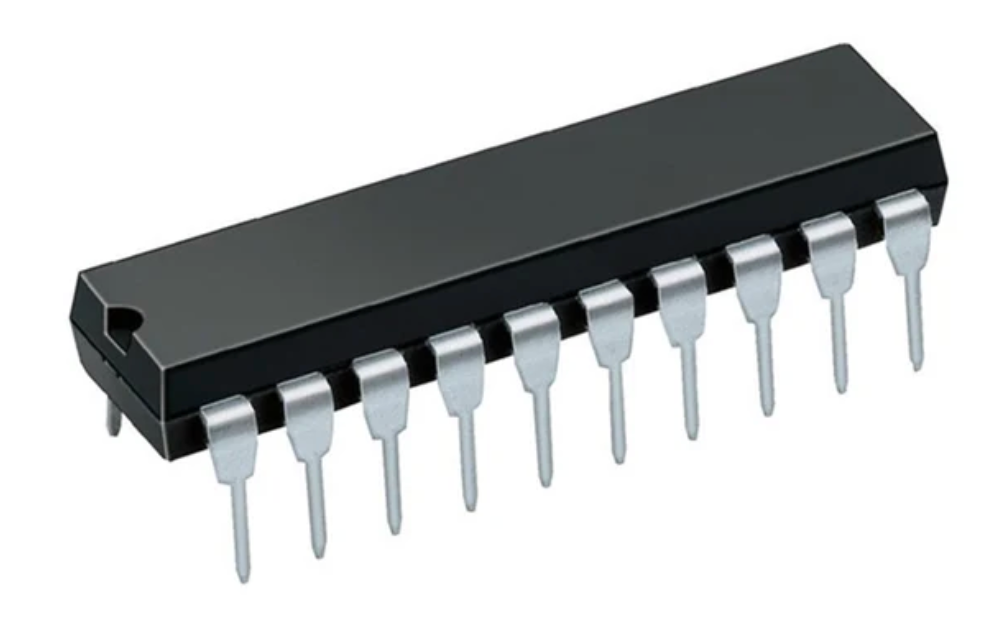

Kuva suuntaa antava.
