CPL16R6

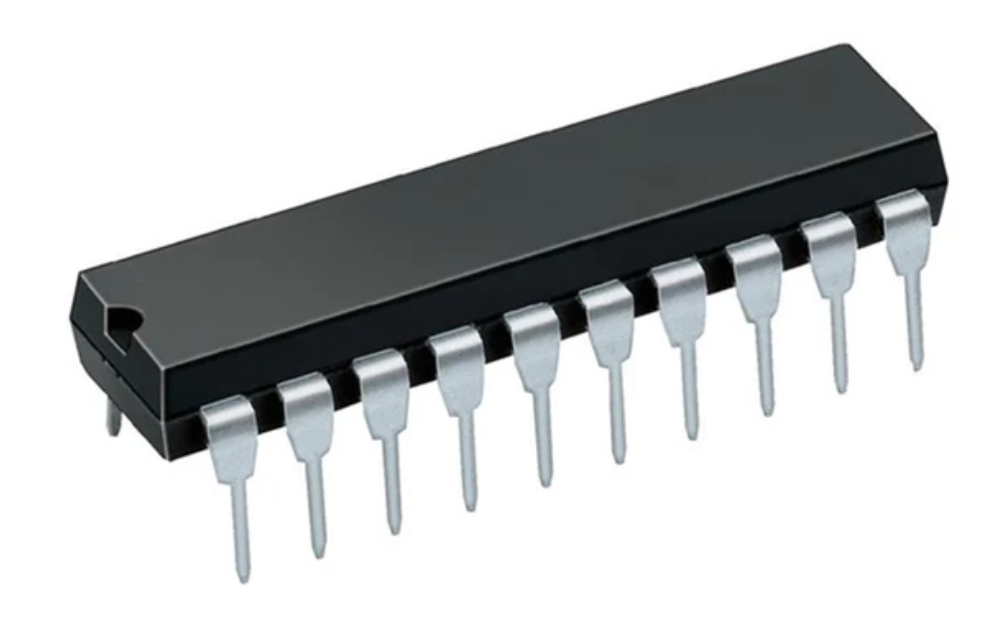

CPL16R6 / CPL16R6-25NC is a high-speed, UV-erasable CMOS Programmable Logic Device (PLD) originally manufactured by Samsung Semiconductor. It serves as an electrically programmable replacement for the bipolar 20-pin PAL16R8 family of logic circuits.

• Architecture: Part of the CPL20 Series, specifically a CMOS Programmable Logic Array.
• Logic Configuration: Designated as a 16R6, which typically indicates 16 inputs and 6 registered outputs.
• Speed Grade: The "-25" suffix typically denotes a propagation delay or maximum clock-to-output time of 25 nanoseconds.
• Package Type: commonly found in a 20-pin DIP (Dual In-line Package) or 20-pin CERDIP.
• Technology: Built using CMOS technology (often E2CMOS), which offers lower power consumption and cooler operating temperatures compared to older bipolar equivalents.

• Compatibility: Designed as a pin-for-pin functional replacement for the standard PAL16R6 bipolar devices.
• Programming: Supported by universal programmers such as the SUPERPRO-280U and TopMax, which handle 20-pin DIP packages without additional adapters.
• Erasability: As a UV-erasable device, it often features a windowed package (for CERDIP versions) allowing it to be erased with ultraviolet light and reprogrammed.
