CPL16R4L-25 - CMOS Programmable Logic Device (PLD)

CPL16R4L-25 / CPL16R4L-25NC s a Programmable Logic Device (PLD) based on CMOS technology. It belongs to the PAL (Programmable Array Logic) family and is specifically designed for high-performance logic applications requiring low power consumption.

• Architecture: PAL-type registered logic.
• Inputs/Outputs: It features 16 inputs and 4 registered outputs.
• Speed/Timing: The "-25" in the part number indicates a propagation delay or speed grade of 25 nanoseconds.
• Logic Capacity: Contains 64 product terms.
• Clock Frequency: Supports a maximum clock frequency of 18 MHz.
• Technology: CMOS technology, offering lower power draw compared to older bipolar versions.
• Supply Voltage: Operates at a nominal 5V DC.
• Temperature Range: Commercial grade, rated for operation between 0°C and 70°C.
• Moisture Sensitivity: Rated at MSL 3.

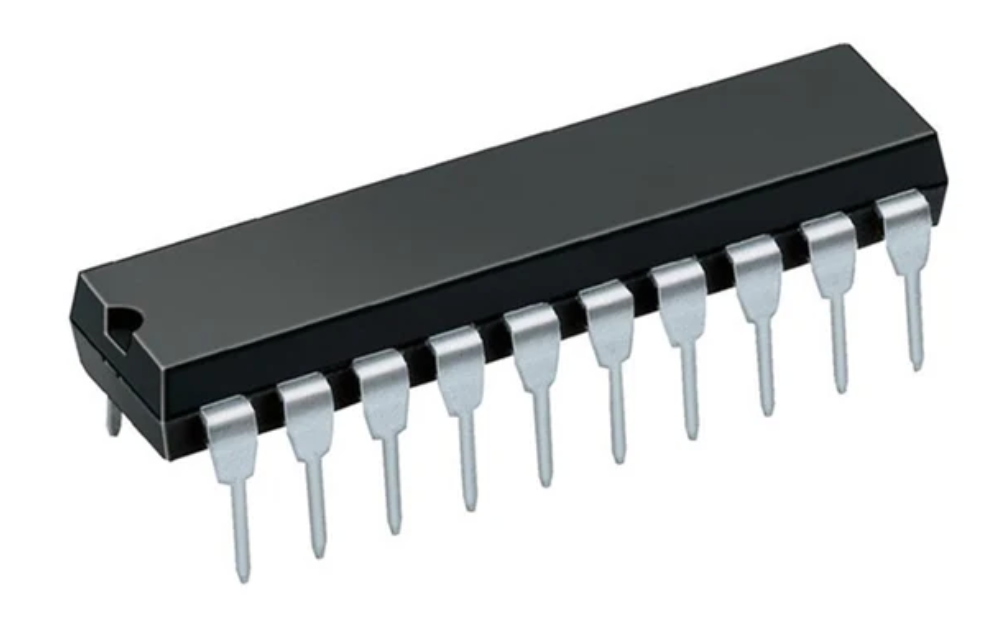

Kuva suuntaa antava.
