CPL16L8L-25

CPL16L8L-25 / CPL16L8L-25CN is a 20-pin, high-speed, ultraviolet (UV) erasable or one-time programmable (OTP) Programmable Array Logic (PAL) device manufactured by Samsung Semiconductor. It belongs to the 16L8 family, designed as a faster, lower-power CMOS replacement for traditional bipolar PAL devices, often used for implementing custom combinational logic, with a 25ns propagation delay.

Key Specifications

• Inputs: 16
• Outputs: 8
• Type: L (Active Low Outputs)
• Speed: 25 ns (indicated by the "-25" suffix)

Common Suffixes

• -25NC: Plastic DIP Package, 25ns, Commercial Grade

Key Features

• Manufacturer: Samsung
• Family: 16L8 (16 inputs, 8 outputs)
• Technology: CMOS (often UV-Erasable or OTP)
• Propagation Delay: 25 ns
• Package: 20-pin Dual In-Line Package (PDIP or similar)
• Functionality: 100% functional and pin-compatible with industry-standard 20-pin PAL devices (e.g., PAL16L8)
• Logic Structure: AND-OR Array with 3-state outputs.

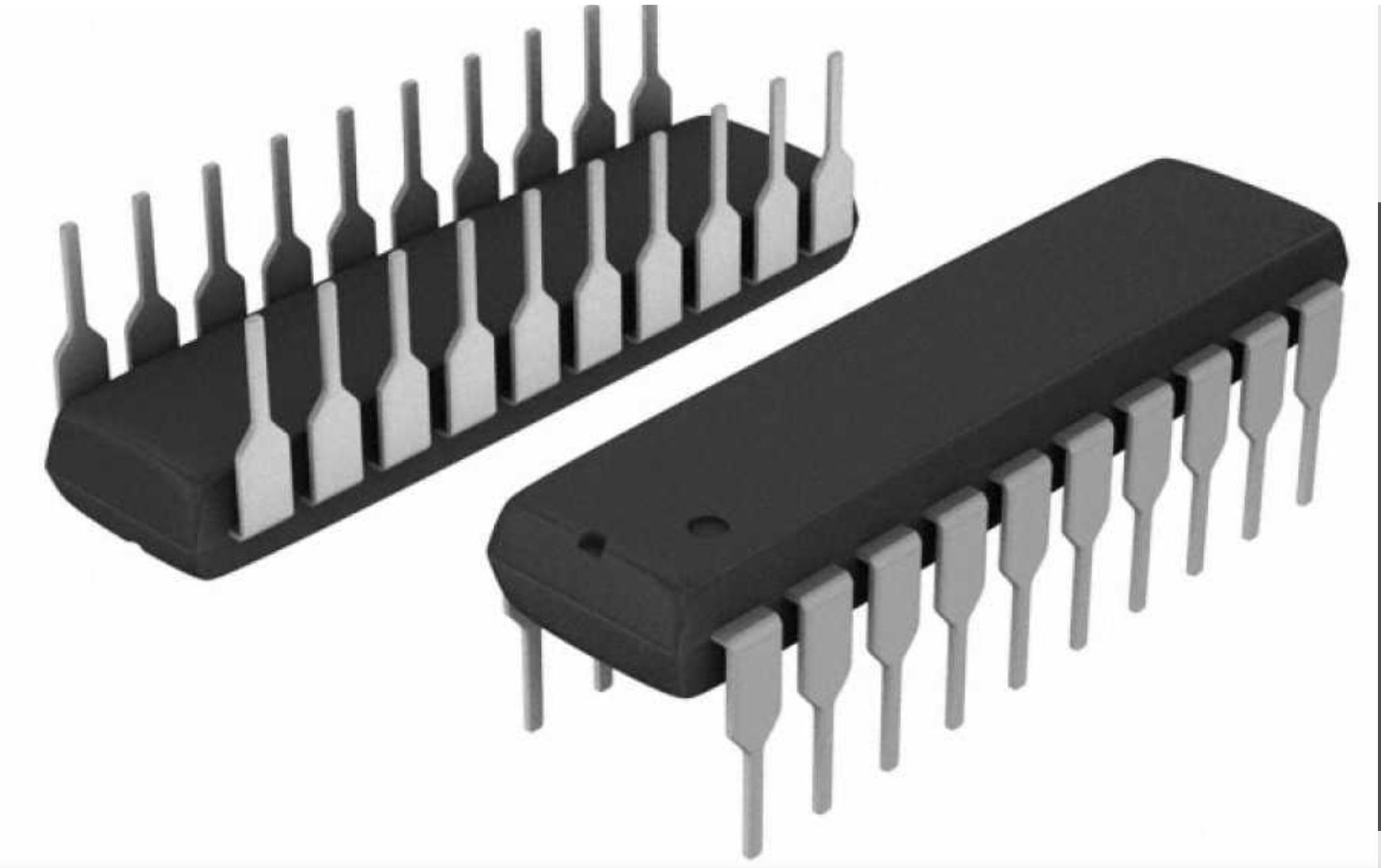

Kuva suuntaa antava.
