BUX42 - NPN 300V 12A

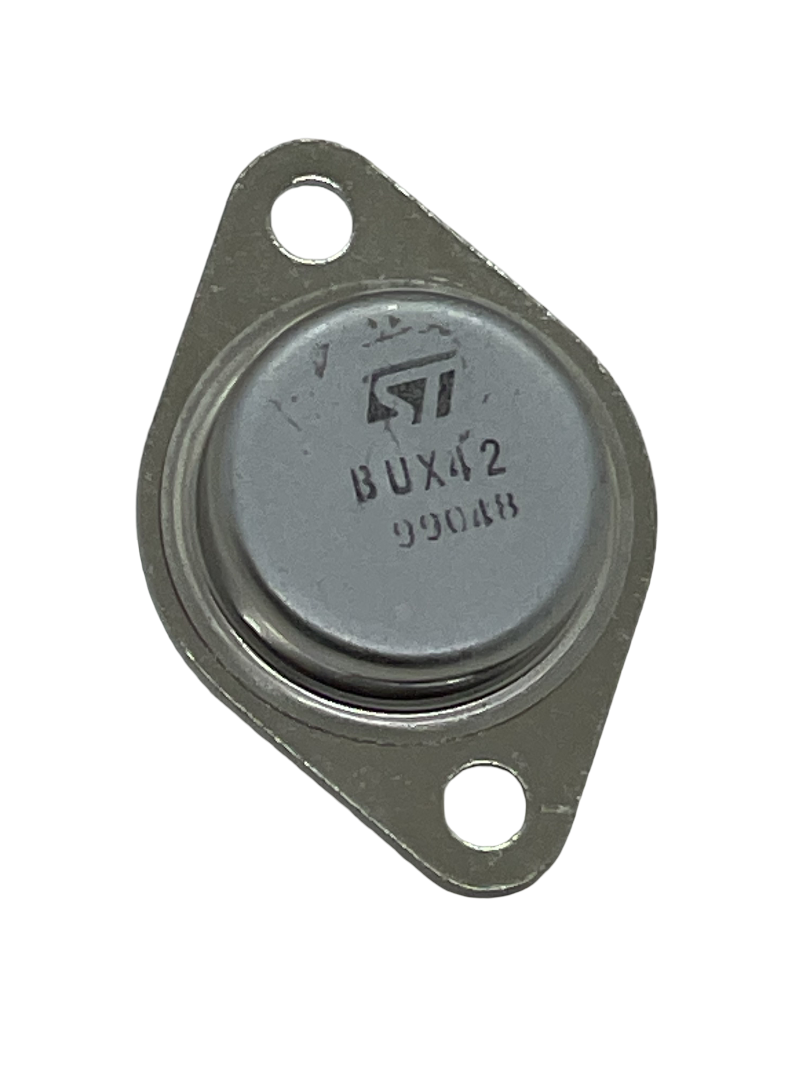

BUX42 is a silicon NPN power transistor in a TO-3 metal package, designed for high-power switching and linear applications in industrial and military equipment. It is rated for a collector-emitter voltage (VCEO) of up to 300V and a continuous collector current (IC) of 12A.

Technical Specifications

The BUX42 features high switching speed and low saturation voltage.

• Polarity: NPN.
• Package Type: TO-3 (Metal Can).
• Max Collector-Emitter Voltage ( VCEO): 250V to 300V depending on the manufacturer.
• Max Collector Current ( IC): 12A continuous.
• Total Power Dissipation ( Ptot): 120W.
• Transition Frequency ( fT): 8MHz to 10MHz.
• Collector-Emitter Saturation Voltage ( VCE(sat)): Max 1.2V at  IC=4A.
• Current Gain ( hFE): Typically between 15 and 45.
