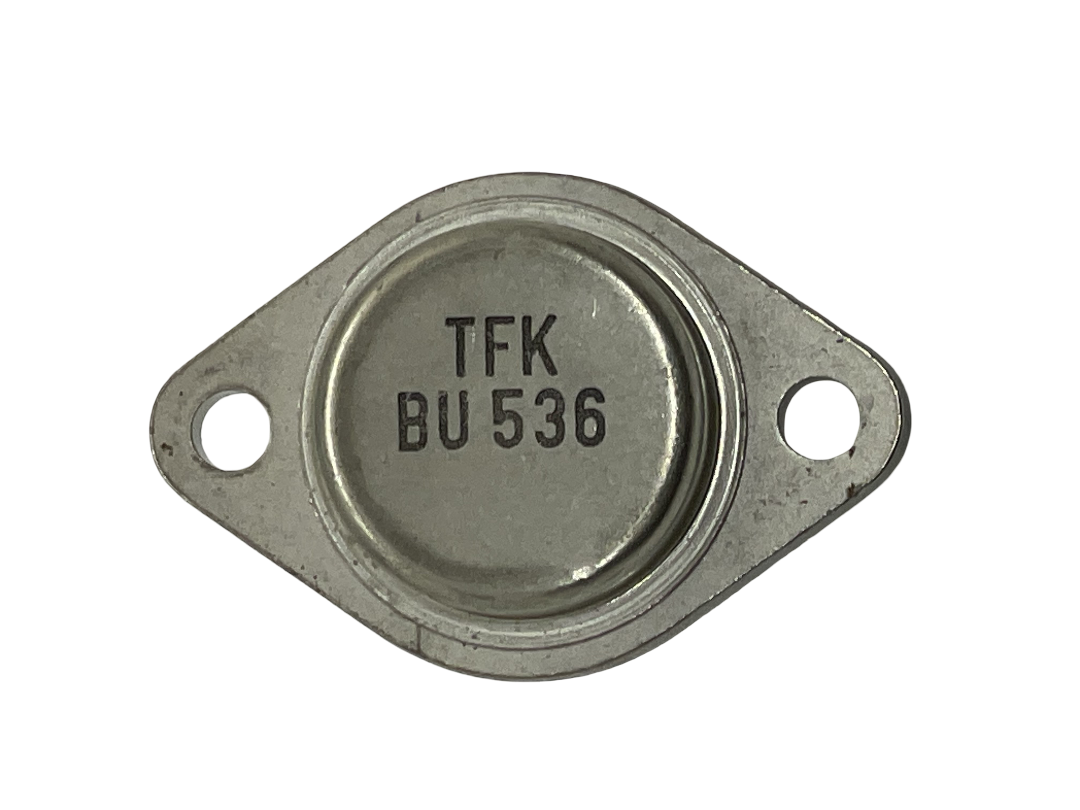

BU536 - NPN 480V 8A

BU536 is a high-voltage NPN silicon power transistor typically housed in a rugged TO-3 metal case. It is primarily designed for demanding applications such as switching-mode power supplies, motor controls, and high-power audio amplifiers due to its high breakdown voltage and current capacity.

Technical Specifications

The key parameters for the BU536 are as follows:

• Polarity: NPN.
• Voltage (Vceo): 480V to 500V (Collector-Emitter voltage).
• Voltage (Vces/Vcb): 1100V (Collector-Base/Emitter voltage with base shorted).
• Current (Ic Max): 8A.
• Power Dissipation (Pd): 62W (some sources list 50W depending on manufacturer).
• Package Type: TO-3 (metal can).
• Operating Temperature: -65°C to 150°C.
