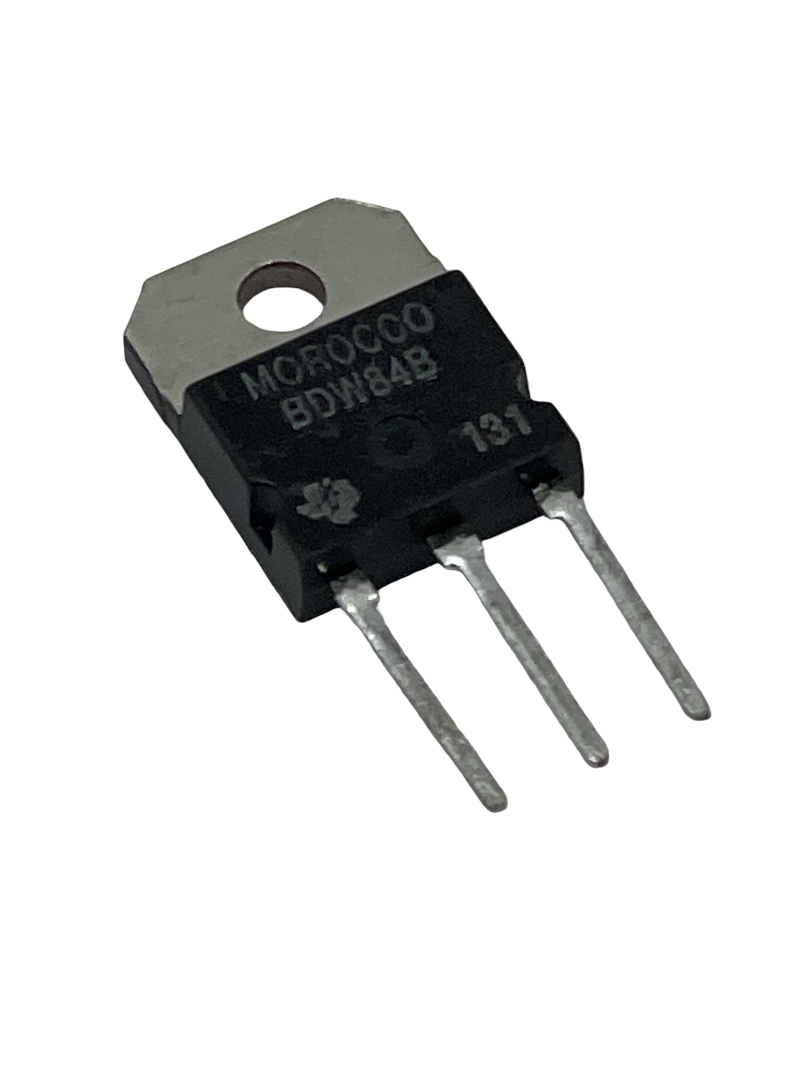

BDW84B - P­DARL. 45V 15A

BDW84B is a high-power silicon PNP Darlington transistor designed for general-purpose amplifier and low-speed switching applications.

Technical Specifications

The BDW84B features high current gain and robust power handling.

• Polarity: PNP Darlington.
• Collector-Emitter Voltage ( VCEO): 80V (Max).
• Collector Current ( IC): 15A (Continuous).
• Power Dissipation ( Ptot): Rated up to 150W at 25°C case temperature.
• DC Current Gain ( hFE): Typically 750 minimum at IC=6A .
• Package Type: Commonly available in TO-3P or TO-218 plastic flange-mount packages.
