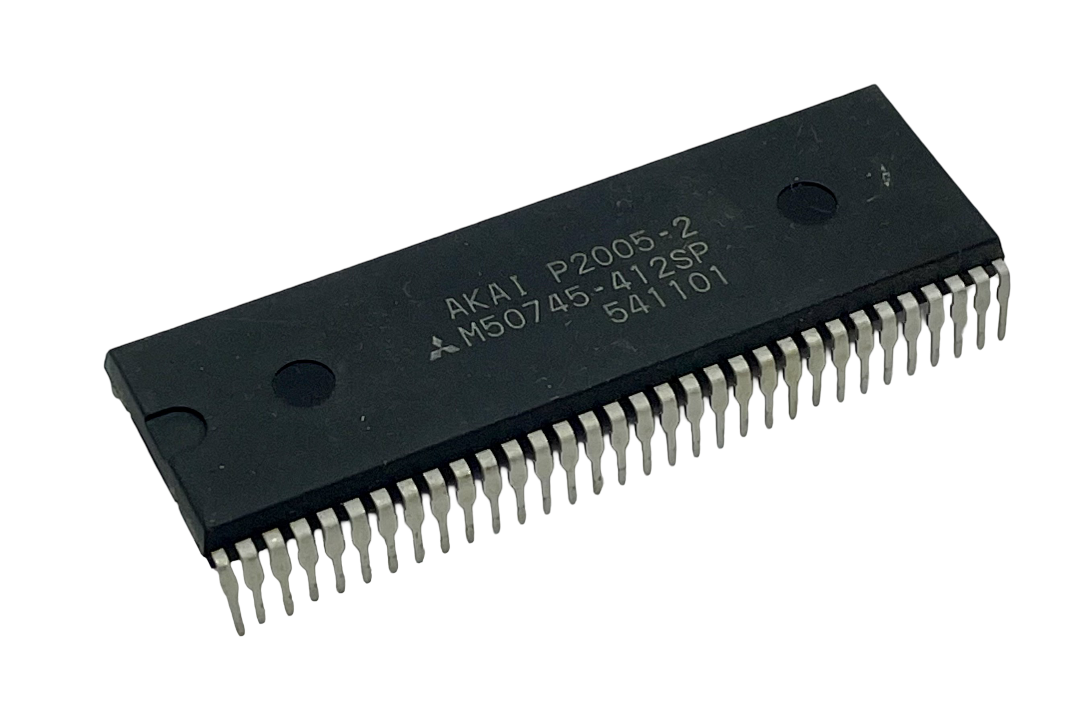

AKAI (Mitsubishi) M50745-412SP - P2005-2

AKAI (Mitsubishi) M50745-412SP - P2005-2 integrated circuit (IC). It is an 8-bit CMOS microcontroller from the M50740 family, specifically customized for use in Akai audio/video equipment.

Technical Details

• Architecture: 8-bit CMOS.
• Package: 64-pin Shrink Dual In-line Package (SDIP64 or DIP64).
• Memory: Typically contains mask-programmable ROM (the "-412" suffix usually refers to a specific customer's pre-programmed firmware) and internal RAM.
• Input/Output: Features high pin-count I/O capabilities, often including specialized timers, A/D converters, and PWM outputs for motor or display control.
• Operating Voltage: Standard 5V operation.
