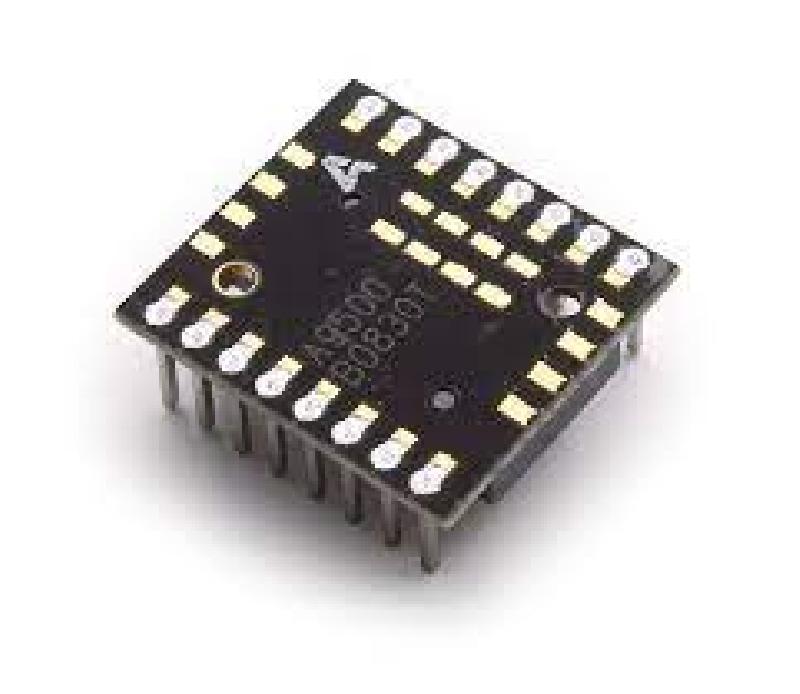

ADNS-9500 - Avago laser sensor. DIP16 -package. Includes laser lens ADNS-6190-002.

Kysy myös tähän sopiva linssi

Description The ADNS-9500 LaserStream gaming sensor comprises of sensor and VCSEL in a single chip-on-board (COB) package. ADNS-9500 provides enhanced features like pro- grammable frame rate, programmable resolution, config- urable sleep and wake up time to suit various PC gamers’ preferences. The advanced class of VCSEL was engineered by Avago Technologies to provide a laser diode with a single longi- tudinal and a single transverse mode. This LaserStream gaming sensor is in 16-pin integrated chip-on-board (COB) package. It is designed to be used with ADNS-6190-002 small form factor (SFF) gaming laser lens to achieve the optimum performance featured in this document. These parts provide a complete and compact navigation system without moving part and laser calibra- tion process is NOT required in the complete mouse form, thus facilitating high volume assembly. Includes laser lens: The ADNS-6190-002 LaserStream gaming round lens is designed for use with Avago Technologies ADNS-9500 LaserStream™ gaming sensor. Together with the inte- grated VCSEL in the same package, the ADNS-6190-002 round lens provides the directed illumination and optical imaging necessary for proper operation of the sensor. ADNS-6190-002 lens is a precision molded optical component and should be handled with care to avoid scratching and contamination of the optical surfaces
