CPL20R6-25

CPL20R6-25 / CPL20R6-25NC is a high-speed CMOS Programmable Logic Device (PLD) primarily used for implementing custom logic circuits in a compact 24-pin package.

Technical Specifications

Based on the Samsung CMOS Programmable Logic Data Book, the CPL20R6-25NC features the following parameters:

• Technology: CMOS Programmable Logic (CPL™).
• Propagation Delay: 25ns, as indicated by the "-25" in the part number.
• Logic Configuration: The "R6" designation indicates it is a Registered device with 6 registered outputs.
• Power Mode: 1/2 Power consumption rating (Half Power).
• Programming Type: One-Time Programmable (OTP).
• Package: 24-pin Plastic Dual In-line Package (DIP).
• Operating Temperature: Commercial grade, indicated by the "C" suffix.

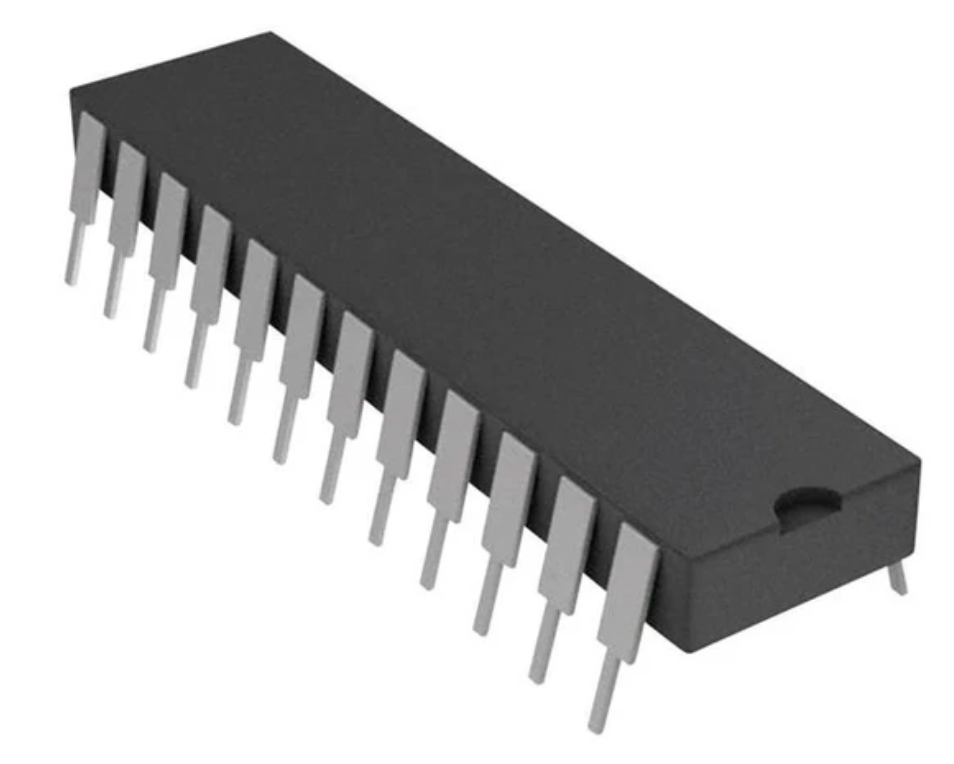

Kuva suuntaa antava.
